NISMO 総合パーツカタログ ~ NISMO PARTS CATALOGUE ~

Stabilizer/スタビライザー

1年間保証

ロールを抑えシャープなコーナリングを実現。

スタビライザーは、左右のサスペンションを剛性の高いバーで結ぶことによって、コーナリング性能を向上させるパーツです。コーナリング時など左右のサスペンションストローク量に違いが生じた際には、バーがねじれ、そこに発生した反発力によって外側のタイヤを路面に押しつけ、ロール量を減少させる働きがあります。なお、直進時には機能しないため、乗り心地を損なうこともありません。

This stabilizer improves cornering performance by joining the left and right side suspension with a highly rigid bar. When cornering, differences in suspension stroke cause the bar to flex and exert a counterforce that pushes the tires to the ground while cutting roll. When going straight, none of these forces are called into play, so the bar remains inactive and the car's ride unaffected.

R35用

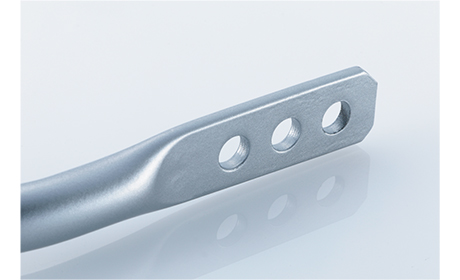

R35リヤ3段調整

特長 FEATURES

NISMOのスタビライザーキットは、日産各車の特性に合わせて、ベストなフィーリングを実現。一般に難しいとされる、バネ定数や前後バランス等のセッティングについても、長年モータースポーツのフィールなどで培ってきた数々の技術・ノウハウを駆使し、最高のバランスを目指しました。装着は、付属のブッシュを使用して、標準品と交換するだけで、特にアライメント調整の必要はありません。標準装着のサスペンションにもぴったりとマッチしますが、NISMOサスペンションと併用することで、より鋭い コーナリングと、扱いやすさを実現します。

The NISMO Stabilizer Kits were developed to match the particularities of each Nissan Car and to bring you the best ride possible. Relying on the abundant know-how and technique NISMO has been able to cultivate through long years of service in the Motor Sports field, we sought the best solutions to often intricate problems, such as the optimum setting for the spring constants or the proper equilibrium between the front and rear of the car. New bushes are included with the each kit. The kit is built to OEM dimensions, so that installation is nothing more than a simple and direct part replacement. There is no need to adjust the new part's alignment. The Stabilizer Kit will exactly match all standard OEM installations as well as the NISMO Suspension for improved cornering and handling.

価格表(単位:円) PRICE LIST(UNIT:YEN)

スタビライザー(NISSAN GT-R用)車種別適合表

Vehicle Application Part no. Code 税込価格 本体価格 Part information
Front Rear
NISSAN
GT-R
R35 '07~'15年モデル注1)注2) 54600-RSR51 E 154,000 140,000 径mm注3) φ34 φ17.3
バネレート注3)
(対'13年モデル
仕様)
110%相当 3段階調整式
146%、165%、
185%相当

注1)'07~'10年モデルに装着の際は、フロントロアリンク右(日産純正部品54500-38B0A 1個)、フロントロアリンク左(日産純正部品54501-38B0A 1個)、フロントスタビライザーコネクティングロッド右(日産純正部品54618-EG02C 1個)、フロントスタビライザーコネクティングロッド左(日産純正部品54668-EG02C 1個)、リヤスタビライザーブッシュ(日産純正部品 54613-62B0B 2個)が必要になります。別途ご購入ください。
注2)'11~'15年モデルに装着の際は、リヤスタビライザーブッシュ(日産純正部品54613-62B0B 2個)が必要になります。別途ご購入ください。
注3)値はすべて当社実測値となります。
※AUTECHブランドの車両は、記載がない場合適合対象外となります。

スタビライザー(スカイラインGT-R用)車種別適合表

Vehicle Application Part no. Part Front Rear
Part no. Code 税込価格 本体価格 Qty per car Part no. Code 税込価格 本体価格 Qty per car
Skyline
GT-R
BNR32
全車
54600-
RSR25
Stabilizer
注1)
54610-RSR25 Q 49,500 45,000 1 56220-RSR25 Q 50,600 46,000 1
BCNR33
全車
54600-
RSR35
Stabilizer
注1)
54610-RS595 Q 52,800 48,000 1 56220-RSR45 Q 38,500 35,000 1
BNR34
全車
54600-
RSR45
Stabilizer
注1)
54610-RSR45 Q 52,800 48,000 1 56220-RSR45 Q 38,500 35,000 1

注1)強化ブッシュ付

スタビライザー補修品

Vehicle Application Part no. Part Front Rear
Part no. Code 税込価格 本体価格 Qty per car Part no. Code 税込価格 本体価格 Qty per car
Skyline
GT-R
BNR32
全車
54600-
RSR25
Bush 54613-RSR25 Q 5,500 5,000 2 55613-RS596 Q 2,200 2,000 2
BCNR33
全車
54600-
RSR35
Bush 54613-RS595 Q 2,200 2,000 2 55613-RS596 Q 2,200 2,000 2
BNR34
全車
54600-
RSR45
Bush 54613-RSR45 Q 2,200 2,000 2 55613-RS596 Q 2,200 2,000 2

商品に関するご注意

  • ●NISSAN GT-R(R35)用は日産純正品(フロント:ブラック)とNISMOオリジナル品(リヤ:シルバー/NISMOステッカー付)のセットとなります。単品での販売はございません。あらかじめご了承ください。
