NISMO 総合パーツカタログ ~ NISMO PARTS CATALOGUE ~

Suspension Link & Bush Application Chart [for Silvia (S14, S15)]/シルビア(S14、S15)用サスペンションリンク&ブッシュ車種別適合表

本商品は保証対象外となります。

Suspension Link

価格表(単位:円) PRICE LIST(UNIT:YEN)

No. Part Part no. Code 税込価格 本体価格 Qty per car Part information
1 Tension Rod Set 54460-RSR40 E 33,000 30,000 1 左右1セット注)
3 Transverse Link Set 54555-RS541 E 44,000 40,000 1 左右1セット
5 Rear A Arm Set (standard) 55550-RS590 E 48,400 44,000 1 左右1セット
5 Rear A Arm Set (reinforced) 55550-RS591 E 53,900 49,000 1 左右1セット、補強板付
7 Rear Upper Link Set, Front 55125-RS580 E 17,600 16,000 1 左右1セット
9 Rear Upper Link Set, Rear 55135-RS590 E 71,500 65,000 1 左右1セット
11 Rear Lower Link Set 55100-RS590 E 30,800 28,000 1 左右1セット
HICAS付車は不要

※標準品と同形状(No. 1を除く)、同材質。NISMO強化ブッシュ圧入済み。カラーはシルバー+「NISMO」ロゴステッカー。
注)グレードによりブレーキエアガイドが標準装着されていますが、Tension Rod Set(No. 1)には標準のブレーキエアガイド装着用のブラケットが付いていないため装着できません。装着する場合はクリップ(日産純正部品41184-24U00 4個)が必要になります。別途ご購入ください。

Repair Parts (Bush)(Needs pressure fitting / 要圧入作業、Applicable to genuine link / 純正リンクにも使用可能)

No. Part Part no. Code 税込価格 本体価格 Qty per car Part information
2 Tension Rod Bush 54476-RS590 E 5,500 5,000 2 54460-RSR40用
4 Transverse Link Bush 54560-RS590 E 5,500 5,000 2 54555-RS541用
6 Rear A Arm Bush 55045-RS590 E 3,300 3,000 4 55550-RS590用
8 Rear Upper Link Bush 55157-RS580 E 2,200 2,000 2 55125-RS580用
10 Rear Upper Link Bush 55157-RS580 E 2,200 2,000 2 55135-RS590用
12 Rear Lower Link Bush 55157-RS590 E 2,200 2,000 2 55100-RS590用

※No. 8、10は共通です。

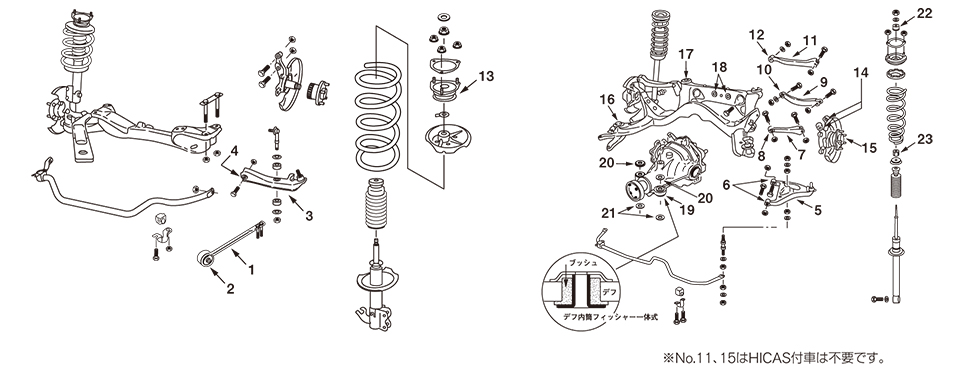

⑤Rear A Arm / リヤAアーム
Suspension Link / サスペンションリンク一式
(写真はS14用)

Reinforced Bush

価格表(単位:円) PRICE LIST(UNIT:YEN)

No. Part Part no. Code 税込価格 本体価格 Qty per car Part information
13 Front Strut Upper Mount 54320-RS520 Q 11,000 10,000 2
14 Rear Axle Bush, Upper 55157-RS521 E 2,200 2,000 4 要圧入作業
15 Rear Axle Bush, Rear 55157-RS580 E 2,200 2,000 2 HICAS付車は不要 要圧入作業
Rear Suspension Mount Bush Kit 55400-RS590 E 20,900 19,000 1 1台分キット(No. 16、17)
Diff Mount Bush Kit 55401-RS590 E 27,500 25,000 1 1台分キット(No. 18~21)注)
22 Upper Mount Bush, Upper 56217-RS580 E 1,100 1,000 2
23 Upper Mount Bush, Lower 56218-RS580 E 1,100 1,000 2

※標準品と同形状(No. 10~13を除く)、同材質で、材質(ゴム)の硬度のみを標準品に対しアップ。No. 14~19のブッシュは圧入作業が必要です。
注)'96/1~の車両は年式によりデフマウントブッシュの内筒とワッシャーが別式のもの(日産純正部品55476-70T00)と図のように一体式のもの(日産純正部品55476-70T20)とがあります。内筒とワッシャーが一体式の車両にデフマウントブッシュを装着する場合、ワッシャー(日産純正部品55482-60U1A 2個)が必要となります。別途ご購入ください。

Repair Parts (Bush)(Needs pressure fitting / 要圧入作業)

No. Part Part no. Code 税込価格 本体価格 Qty per car Part information
16 Rear Suspension Mount Bush, Front 55440-RS520 E 5,500 5,000 2 55400-RS590用
17 Rear Suspension Mount Bush, Rear 55442-RS520 E 5,500 5,000 2
18 Diff Mount Bush, Rear 55470-RS580 E 9,900 9,000 2 55401-RS590用
セットで使用
No. 20、21圧入作業不要
19 Diff Mount Bush 55476-RS580 E 3,300 3,000 2
20 Diff Mount Stopper Bush, Upper 55474-RS580 E 880 800 2
21 Diff Mount Stopper Bush, Lower 55475-RS580 E 660 600 2

商品に関するご注意

  • ●リンクおよびブッシュとも必ず左右を同時に交換してください。片側のみ交換すると、左右のサスペンションのバランスが崩れるため、補修の際でも、同時に交換してください。
  • ●リヤのリンクを交換する際には、No.14、15のリヤアクスル側のブッシュおよびNo.16、17のサスペンションマウントブッシュを、それぞれ同時にNISMO製に交換することをお勧めします。リンクの交換のみでは、サスペンションの性能を100%発揮できません。

*COMPETITIONパーツについて

  • ●COMPETITIONパーツはモータースポーツ活動での使用を前提に、過酷な条件下でのパーツ本来の性能を優先して開発しているため、装着により走行中に「音」や「振動」が発生する場合があります。またパーツを正しく装着するための細かなセッティングや技術を必要としますので、商品の特性、車両状態、車両の用途を専門店にご相談の上、専門店でお買い求めください。
  • ●一部のCOMPETITIONパーツは、国が定めている改造にあたるため、構造変更検査等申請が必要な場合があります。構造変更検査等申請に関するお問い合わせは管轄の国土交通省検査登録事務所までお願いします。
  • 注意:商品に添付されている「取付要領書」を必ずお読みいただき、正しく使用してください。また、商品の加工・改造は絶対に行わないでください。
  • 注意:商品の取り付けは、対象車種の「整備要領書」(日産自動車(株)発行)、及び「取付要領書」に従い行ってください。エンジンやブレーキ系などの主要部位の分解整備は、指定整備工場または認証整備工場にて有資格者が作業を行なうか、もしくは取り付け後、指定整備工場または認証整備工場にて有資格者による点検を受けてください。

COMPETITION PARTS

  • 1. COMPETITION PARTS are developed and manufactured for motor sports racing under the strictest standards and prioritize high performance above all else. Depending on where and how they are installed, noise or vibration may occur when driving. Furthermore, for parts to be installed correctly, advanced mechanical skills or fine-tuning is often necessary. Please discuss the particularities of the product you are thinking of purchasing as well as how it fits your car and your specific driving needs with a specialized vendor before you buy and install it.
  • 2. Some COMPETITION PARTS fall under the jurisdiction of national laws and regulations controlling the remodeling, modification or customizing of cars and necessitate an application for permission and/or a special inspection control. Such permissions and inspections must be requested from the Motor Vehicle Bureau of the country of jurisdiction where the car will be modified and/or used. This is the responsibility of the car owner and NISMO will be in no way liable to any person for irregularities in motor vehicle inscription or inspection control for vehicles belonging to buyers or other parties who install COMPETITION PARTS.
  • NOTE: Please always read the installation instructions accompanying NISMO products and follow them faithfully. Please do not re-work, modify or customize NISMO products.
  • NOTE: When installing NISMO products, please do so as indicated in the service manual for the car to be modified (published by NISSAN Motors, Co., Ltd.) as well as in the installation instructions accompanying the part. When overhauling key mechanisms like the engine or brake system, please have the work done by a trained mechanic at a service center listed or certified by NISMO or, at the very least, have your new installation inspected by such a service center to be sure that it is in proper working order.
