[Overview of products]

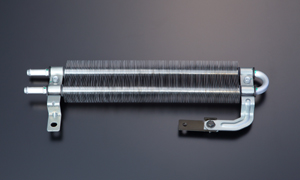

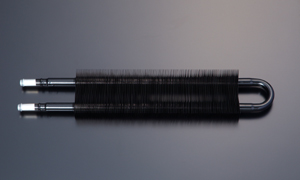

3. Power steering oil cooler kit

(For Z33) (For Z34)

The core of genuine power steering oil cooler was made larger. By increasing the heat radiation calories by approximately 1.6 times that of the genuine component, the oil temperature will be stabilized even during circuit driving.

■Performance data
  Z33 Z34
Test vehicleVersion NISMO Type 380RSVersion NISMO
Test courseFuji SpeedwayFuji Speedway
External temperature20°C10°C
Average lap time2 min 05 sec range2 min 06 sec range
Oil temperature122°C
(cooling effect: Approx. -15°C)		116°C
(cooling effect: Approx. -15°C)

[Specifications]
•Aluminum alloy inner fin type
•Genuine replacement type
•Core length：240 mm for Z33 (150 mm for genuine), 280 mm for Z34 (170 mm for genuine)

[Kit components]
•Oil cooler core + exclusive bracketsNote
Note : Only the core for Z33.

[Applicable models]
All Fairlady Z (Z33, Z34) models

■Price List (One-year warranty)
Description Suggested retail price
(tax included)		 Remarks
Power steering oil cooler kit For Z33 28,350 yen
For Z34 31,500 yen
*The price includes the installation labor charge. It does not include the charge for power steering fluid. It will be charged separately. Note )
Note:When the power steering oil cooler is attached, the volume of power steering fluid used will increase a little.
