[Overview of products]
2. Rear differential oil cooler kit

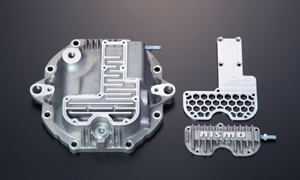

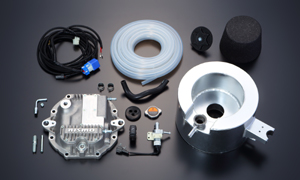

<Kit components> <Differential case cover>

NISMO has adopted an unprecedented rear differential oil cooler of a water-cooling type. A water jacket is provided for the exclusive differential case cover with a cooling fin, and cooling water is circulated to cool the differential oil in the case. A tank for cooling water is installed in the space for the spare tire, and a pump circulates the cooling water. The cooler can be switched on or off from inside the vehicle.

■Performance data
  Z33 Z34
Test vehicleVersion NISMO Type 380RSVersion NISMO
Test courseTsukuba CircuitFuji Speedway
Ambient temperature15°C10°C
Average lap time1 min 10 sec range2 min 06 sec range
Oil temperature156°C
(cooling effect: Approx. -20°C)		163°C
(cooling effect: Approx. -20°C)

<Example of water tank installation>

[Specifications]
•Water cooling type
•Kit weight: Approx. 6 kg (dry weight)

[Kit components]
•Exclusive differential case cover (with cooling fin and water jacket) (with NISMO logo)
•Water tank (capacity 4 L)
•Water pump
•Harness & swicth
•Attachment accessories set

[Applicable models]
All Fairlady Z (Z33, Z34) coupe models

■Price List (One-year warranty)
Description Suggested retail price
(tax included)		 Remarks
Rear differential oil cooler kit For Z33 178,500 yen To be marketed on August 4, 2010
For Z34
*The price includes the installation labor charge. It does not include the charge for the differential oil or LLC. They will be charged separately. Note)
Note:The volume of differential oil does not change even after the rear differential oil cooler kit is attached. LLC is used for cooling water.

[Notes for using kit]
•Continuous driving while the rear differential oil cooler kit is switched on should be restricted up to 30 minutes. Do not continue to drive for more than 30 minutes with the kit switched on. After driving, operate the pump when parked to fully cool the kit (for at least 20 minutes), and then start driving again.
•The kit cannot be installed with a spare tire.Note 1
•The kit cannot be used with a subwoofer in the Bose®sound system.Note 1
Note 1 When using a rear differential oil cooler kit, you will need to carry out the simple work of replacing the spare tire and subwoofer with the water tank.
* Bose® is a trademark of Bose Corporation in the USA.
