[Overview of products]
1. Engine oil cooler kit

(For Z33) (For Z34)

NISMO has adopted a genuine oil cooler core for NISSAN GT-R (R35) which is excellent in both performance and quality for this product. The installed thermostat enables optimum oil temperature control. To enhance the cooling efficiency, an exclusive air duct and an exclusive inner fender (only for Z34) are kitted for different bumper shapes. Select the kit that matches your bumper type.

[Selectable bumper]
<For Z33>
①Version NISMO (Type 380RS) bumpe
②Normal bumper & NISMO front bumper spoiler
③NISMO front bumper spoiler Ver. 2

<For Z34>
①Version NISMO bumper
②Normal bumper

■Performance data
  Z33 Z34
Test vehicleVersion NISMO Type 380RSVersion NISMO
Test courseFuji SpeedwayFuji Speedway
Ambient temperature20°C10°C
Average lap time2 min 05 sec range2 min 06 sec range
Oil temperatureStable under 120°C
(cooling effect: Approx. -40°C)		Stable under 107°C
(cooling effect: Approx. -45°C)

[Specifications]
•Air cooling type
•Kit weight: Approx. 7 kg

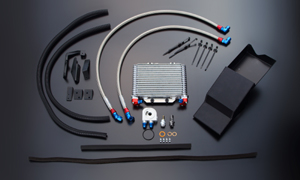

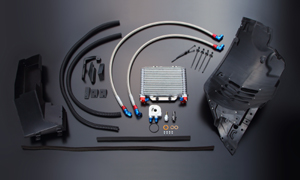

[Kit components]
•Oil cooler core [NISSAN GT-R (R35) modified genuine parts]
•Air duct
•Inner fender (only for Z34)
•Thermostat
•Stainless steel braided hoses (feed, return)
•Hose brackets
•Oil filter brackets
•Attachment accessories set

[Applicable models]
All Fairlady Z (Z33, Z34) models

■ Price List (One-year warranty)
Description Suggested retail price
(tax included)		 Remarks
Engine oil
Z33 Version NISMO (Type 380RS) bumper 199,500 yen
Normal or NISMO front bumper spoiler
NISMO front bumper spoiler Ver. 2
Z34 Version NISMO bumper 210,000 yen
Normal bumper
*The prices include the installation labor charge. It does not include the charge for engine oil. It will be charged separately.Note）
Note: Approx. additional 2 L of engine oil is required when attaching the engine oil cooler kit.

[Note for attachment]
It is necessary to cut the radiator core support to attach the kit.
