31.03.2010

GT L.S.D. Pro Carbon now available

Nissan Motorsports International Co., Ltd. (Head Office: Minami-Oi, Shinagawa-ku, Tokyo, President: Yuichi Sanada, "NISMO") will launch "GT L.S.D. Pro Carbon" on April 21st.

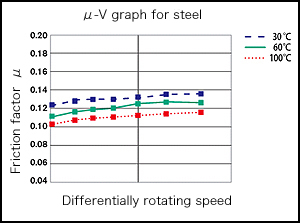

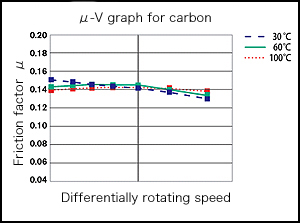

GT L.S.D. Pro Carbon is a new type of L.S.D. in which the basic structure of GT L.S.D. Pro is unchanged. For the friction disc surface in L.S.D., it adopts the carbon fiber cloth material specially developed for wet clutches. Having high lubricating ability and good μ-V characteristics resistant to changes in temperature, the carbon material suppresses stick slip* thereby improving drive performance and driving stability. It is designed not to easily cause variations in the L.S.D. operating characteristics due to the wear condition of tires and changes in road conditions or the differentially rotating speed difference of tires.



In addition to the lubricity of the carbon material itself, the oil permeating into the carbon fiber allows this product to prevent oil film breakdown, compared with the previous steel plate product, and reduces chattering noise that is peculiar to a mechanical L.S.D.
The carbon material for wet clutches is totally impervious to attacks on the L.S.D. body, peripheral parts and oil that is caused by sludge produced from wear on the carbon facing, thus ensuring high durability. The life of L.S.D. oil can also be controlled in the same manner as the previous GT L.S.D. series that used steel plates; you can use this product with an easy mind in the same way as the previous products.

GT L.S.D. Pro Carbon produces a high traction through ideal operation of L.S.D. in a circuit run where high grip force is always required whatever the tire or road conditions. This product also does not produce more L.S.D. effect than necessary while normally driving on general roads with a bad road environment. Therefore, it significantly reduces chattering noise compared with a general mechanical L.S.D.


             <Friction disc>
   <Friction plate (reference)>
* Testing has already confirmed that there are no attacks on the L.S.D. body, peripheral parts and oil, caused by sludge produced due to wear of the carbon facing.
* There are 5 friction discs on one side making for a total of 10 pieces on the right and left sides, the same as GT L.S.D. Pro. The carbon fiber cloth material is adopted only for friction discs (10 pieces on both sides). (The friction plate is made of steel.)
* Stick slip: A phenomenon where the plate is not completely locked but repeatedly slips and locks in cycles.

< Initial torque is set at 6 kgf•m >

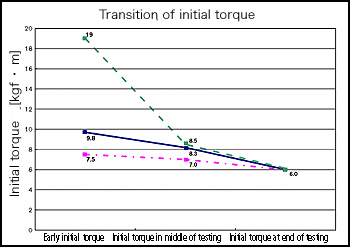

GT L.S.D. Pro Carbon has uniquely designed wear characteristics for the carbon facing. It is designed to be stable at an initial torque of 6 kgf•m, which is the best L.S.D. operating area in a circuit grip run with the GT L.S.D. series. Furthermore, with the select position set at LOW (approx. 8 kgf•m*) when delivered, you can maintain the initial torque by switching it to MIDDLE or HIGH without disassembling the L.S.D. body even when the initial torque drops below 6 kgf•m.
* Using the carbon facing, designed to target an initial torque of 6 kgf•m, the initial torque drops to 6 kgf•m and is stabilized in a run of about 100 km even if it is used at MIDDLE (approx. 11 kgf•m) or HIGH (approx. 17.5 kgf•m). Since the initial torque is designed to be stabilized at 6 kgf•m in all select positions, please note that increasing the initial torque more than necessary will result in excessive wear and accelerate the consumption of L.S.D.
* Design standard value when delivered



[Table comparing products in GT L.S.D. Series]
                       Item GT L.S.D. Pro Carbon           GT L.S.D. Pro           GT L.S.D.
Diff type R200 R200 R200
Differential system 2WAY 2&1.5WAY 2&1.5WAY
Internal pressure Internal pressure Internal pressure
Initial torque With variable initial torque function
(8.0-11.0-17.5kgf•m)Note)		 With variable initial torque function
(6.5-8.5-14.0kgf•m)Note)		 Initial torque fixed
(8.0kgf•m)Note)
Number of clutch plates 20 plates 20 plates 20 plates
Clutch plate thickness t = 2.15 (Friction disc/carbon)
t = 1.0-1.2 (Friction plate/steel)		 t=1.5 t=1.5
Clutch plate groove Cloth (Friction disc/carbon)
Ungrooved (Friction plate/steel)		 Grooved
Number of clutch plate tabs
(Ungrooved tabs)		 Inner 8 8 8
Outer 16 16 16
Clutch plate Inner OD (mm) 103 103 103
ID (mm) 59 59 59
Outer OD (mm) 104 104 104
ID (mm) 60 60 60
Sliding area (mm²) 2WAY : 55º/ 45º 2WAY : 55º/ 45º, 1.5WAY : 55º/ 1º
Cam angle Drive side/coast side 2WAY : 55º/ 45º 2WAY : 55º/ 45º,1.5WAY : 55º/ 1º
L.S.D. gear & pinion mate shaft Made by precision forging
L.S.D. installation kit With installation kit
Note) GT L.S.D. Pro Carbon is set for 2 WAY only.
Note) Initial torque is the design standard value.
[Installation kit supplied]
GT L.S.D. Pro Carbon provides a kit containing L.S.D. engine oil, a side flange, an oil seal, a gasket, a side bearing and a ring gear bolt necessary for installation on a vehicle. (The contents of the kit vary depending on the vehicle on which the product is to be installed.) You can install this product on your vehicle just by purchasing GT L.S.D. Pro Carbon without any additional parts.


[Applicable models & Price List for GT L.S.D. Pro Carbon](1 year warranty)
Model Type Engine Compatibility GT L.S.D. Pro Carbon
2 WAY Part No.		 Suggested
retail price
(tax included)		 Diff type
(axle)		 Final ratio
180SX RS13 CA18DET All cars 38420-RSC20-C5 220,500 R200V 4.363
RPS13 SR20DET - '95/10 (5 hole type),
M/T car		 38420-RSC20-B5 220,500 R200V 4.083
'95/10 - (6 hole type),
M/T car		 38420-RSC20-C5 220,500 R200V 4.083
A/T car 38420-RSC20-D5 220,500 R200V 3.916
SR20DE '96/8 - 38420-RSC20-C5 220,500 R200 4.083
Silvia S13
PS13		 CA18DE
SR20DE		 Car with ABS or
car with viscous		 38420-RSC20-C5 220,500 R200
R200V		 4.083,
4.363
CA18DET All cars R200V 4.363
SR20DET M/T car 38420-RSC20-B5 220,500 R200V 4.083
A/T car 38420-RSC20-D5 220,500 R200V 3.916
S14
CS14		 SR20DE Car with
HICAS or viscous		 38420-RSC20-C5 220,500 R200
R200V		 4.083
SR20DET A/T car 38420-RSC20-D5 220,500 R200V 3.916
M/T car 38420-RSC20-C5 220,500 R200V 4.083
S15 SR20DE All cars
(including
Autech Version car)		 R200
R200V
R200H		 4.083
SR20DET All cars 38420-RSC20-D5 220,500 R200V
R200H		 4.083
Skyline HR32 RB20E Car with ABS 38420-RSC20-C5 220,500 R200 4.083
H(C)R32 RB20DE All cars R200
R200V		 4.363
E(C)R32 RB25DE M/Tcar 4.363
HCR32 RB20DET 2WD car 38420-RSC20-B5 220,500 R200V 4.363
HNR32 RB20DET 4WD car 38420-RSC20-E 220,500 R200V 4.375
HR33 RB20E Car with
ABS and
without viscous		 38420-RSC20-C5 220,500 R200 4.083
Car with viscous R200V 4.083
E(C)R33 RB25DE - '96/1, A/T,
without viscous		 38420-RSC20-D5 220,500 R200 3.538
'96/1 -, A/T,
without viscous		 38420-RSC20-C5 220,500 R200 4.363
M/T,
without viscous		 R200V 4.363
- '94/4
(5 hole type),
2 door, M/T,
car with viscous		 38420-RSC20-C5 220,500 R200V 4.363
'94/4 - '96/1
(6 hole type),
2 door,M/T,
car with viscous		 R200V 4.363
ENR33 RB25DE All 4WD cars 38420-RSC20-C5 220,500 R200V 4.363
ECR33 RB25DET Excluding cars
with active L.S.D.		 38420-RSC20-B5 220,500 R200V 4.111,
4.363
R34 RB20DE All cars 38420-RSC20-C5 220,500 R200
R200V		 4.363
ER34 RB25DE 2WD, A/T,
M-A/T car		 R200
R200V		 4.083
2WD, M/T car 38420-RSC20-B5 220,500 R200
R200V
R200H		 4.363
RB25DET 2WD car R200V
R200H		 4.111
CPV35 Note1)
V35 Note1)		 VQ35DE M/T car,
CVT car		 38420-RSC25-33 231,000 R200V,
Reinforcement		 3.538
CKV36 Note1) VQ37VHR M/T car 38420-RSC25-34 231,000 R200V,
Reinforcement		 3.692
ENR34 RB25DE 4WD car 38420-RSC20-C5 220,500 R200V 4.363
Skyline
GT-R		 BNR32 RB26DETT Excluding cars with
active L.S.D.		 38420-RSC20-E 220,500 R200 4.111
BCNR33
Fairlady Z Z32 VG30DE Car without ABS 38420-RSC20-B5 220,500 R200V 4.083
Z33 Note1) VQ35DE M/Tcar 38420-RSC25-33 231,000 R200V,
Reinforcement		 3.538
Z34 Note1) VQ37VHR M/Tcar 38420-RSC25-34 231,000 R200V,
Reinforcement		 3.692
Cefiro (C)A31 RB20E Car with ABS or
HICAS		 38420-RSC20-D5 220,500 R200
R200V		 3.916
RB20DE All cars 38420-RSC20-C5 220,500 R200
R200V		 4.083,
4.363
RB20DET All cars 38420-RSC20-B5 220,500 R200V 4.363
Laurel HC33 RB20E A/T (- '91/1),
car with ABS,
without viscous		 38420-RSC20-D5 220,500 R200 3.538,
3.900,
3.916
Car with viscous R200V 3.538,
3.916
H(C)C33 RB20DE All cars 38420-RSC20-C5 220,500 R200
R200V		 4.083,
4.363
SC33 RD28 All cars 38420-RSC20-D5 220,500 R200
R200V		 3.692,
3.916
HCC33 RB20DET All cars 38420-RSC20-B5 220,500 R200V 4.363
HC34 RB20E Car with viscous 38420-RSC20-D5 220,500 R200V 3.916
RB20DE All cars 38420-RSC20-C5 220,500 R200
R200V		 4.083
G(C)C34
SC34		 RB25DE
RD28		 Car without viscous 38420-RSC20-D5 220,500 R200 3.538,
3.692,
3.916
- '96/12,
car with viscous		 R200V 3.538,
3.692,
3.916
G(C)C34 RB25DE '96/12 -,
car with viscous		 38420-RSC20-C5 220,500 R200V 4.363
GNC34 RB25DE All 4WD cars R200V 4.363
G(C)C34 RB25DET All cars R200V 4.083
G(C)C35 RB25DET - '98/9 R200V 4.083
'98/9 - 38420-RSC20-B5 220,500 R200V 4.083
Stagea WHC34
WGC34		 RB20E - '97/8 38420-RSC20-C5 220,500 R200
R200V		 4.083
RB20DE All cars 38420-RSC20-C5 220,500 R200
R200V		 4.083
RB25DE All cars
with viscous &
'97/8 - Car
without viscous		 R200
R200V		 4.083
RB25DET '98/8 - M/T,
car with viscous		 38420-RSC20-B5 220,500 R200V 4.083
WGNC34 RB25DE All 4WD cars 38420-RSC20-C5 220,500 R200V 4.363
RB25DET -'98/8,
4WD, A/T car		 R200
R200V		 4.083
'98/8 -,
4WD, A/T car		 38420-RSC20-B5 220,500 R200
R200V		 4.083
'98/8 -,
4WD, M/T car		 38420-RSC20-E 220,500 R200V 4.111
RB26DETT '260RS R200 4.111
Note1)The oil temperature is apt to rise because of the structure of the vehicle. For use under a high load, we recommend installation of the diff. oil cooler.
*With installation kit
