31.03.2010
-
"NISMO Data Logger Kit BASE" for NISSAN GT-R (R35) 2010 now available
-

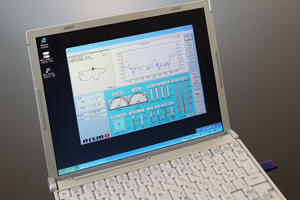

*The photo shows an image.
PC is not included in the goods.
Nissan Motorsports International Co., Ltd. (Head office at Minami-Oi Shinagawa-ku, Tokyo, President: Yuichi Sanada, "NISMO") launches "NISMO Data Logger Kit BASE" for the NISSAN GT-R (R35), which goes on sale in Japan at NISMO Omori Factory, NISMO Expert Shops nationwide, Nova Engineering Co., Ltd. and NordRing, certain Nissan certified shops for NISSAN GT-R, and Nissan High Performance Centers nationwide. It is also available at Middlehurst Motorsport, NISMO authorized dealer, in the UK.
By downloading the data shown on the multi-function meter of the NISSAN GT-R (R35) while driving via the USB memory and installing the special analysis software included in the Data Logger Kit, BASE you can analyze the data extracted. Furthermore, because the circuit map can be displayed on the analysis screen by measuring the lap time with the NISMO MFD Lap Sensor Kit (sold separately), more detailed analysis is possible.
[Applicable Models]
NISSAN GT-R (R35) 2010 Year Model (Dec. 2009 models and on)
<Data which can be downloaded from vehicle>
•Vehicle speed •Engine speed •Gear position •Lateral G •Longitudinal G •Boost pressure •Brake fluid pressure •Steering angle •Throttle position •ECO level •Engine water temp. •Engine oil temp. •Transmission oil temp
<Data download method>
Connect the provided USB memory in the USB connector on the vehicle and drive the vehicle. Data downloading starts when the "Start/Stop" switch on the steering is pushed and stops when the "Start/Stop" switch is pushed again. Download is possible for up to 60 minutes at one time.
* At first, default setting is required on the vehicle side to download the data from the vehicle. The default setting will be done at each dealer free of charge.

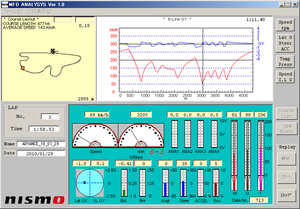

<Data analysis screen> (This is the screen displayed when the NISMO MFD Lap Sensor Kit is used)
All the data downloaded from the vehicle is displayed on the meter area (lower column) of the screen and each data item can be selected and displayed on the graph area (upper column) of the screen in the following combination. Through the analysis screen, you can analyze vehicle data or driving data at any point of the circuit, lap by lap.

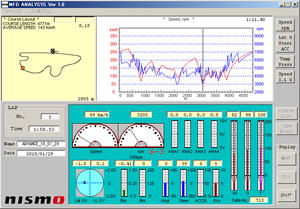

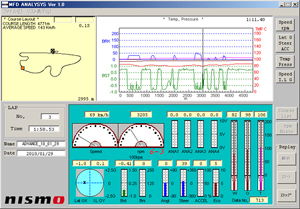

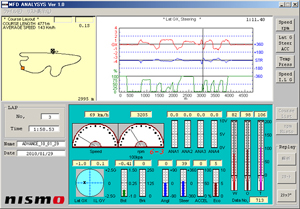

< Graph : Vehicle speed, Engine speed > < Graph : Lateral G, Steering angle, Throttle position > < Graph : Engine water temp., Engine oil temp.
Transmission oil temp. Boost pressure, Brake fluid pressure >< Graph display : Vehicle speed, Longitudinal G > * Unless NISMO MFD Lap Sensor is used concurrently, the circuit map at the upper left part of the screen is not displayed.

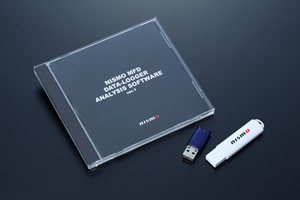

[KIt Components]
•Data analysis (CD-ROM)
•USB key for software activation
•USB memory (8GB, with NISMO logo)
[Operating environment]
Operating system : Windows® XP, Windows Vista®
* Windows is a registered trademark of Microsoft Corporation in the USA and other countries.
■Price list
Description Suggested retail price
(tax included)Remarks NISMO Data Logger Kit BASE 26,250 yen 1 year warranty
■Dealer List
"NISMO Data Logger Kit BASE" for NISSAN GT-R (R35) is available from the following dealers:
•NISMO Omori Factory (JP) •NISMO Expert Shops nationwide (JP)
•Certain Nissan certified shops for NISSAN GT-R (NOVA Engineering Co., Ltd., NordRing) (JP)
•Nissan High Performance Centers (NHPC) nationwide (JP)
•Middlehurst Motorsport (UK)
● For inquires, NISSAN MOTORSPORTS INTERNATIONAL Co., Ltd. https://www.nismo.co.jp/en/misc/contact.html NISMO INFORMATION CENTER
